components & modules
list of parts available to use
MCU
| part | library | description |
|---|---|---|
| STM32F103C8T6 | ✔️ | Medium-density performance line Arm ® -based 32-bit MCU with 64 or 128 KB Flash, USB, CAN, 7 timers, 2 ADCs, 9 com. interfaces |
| D1 mini | ❌ | A mini wifi board with 4MB flash based on ESP-8266EX |
| RP2040 | ❌ | RP2040 SuperMini Raspberry Pi Pico development board dual-core supports Mciro Python 2MB Flash |
| ESP32-WROOM-32 | ✔️ |
power supply
| part | library | description |
|---|---|---|
| buck | ❌ | Mini DC 12-24V To 5V 3A Step Down Power Supply Module Voltage Buck Converter Adjustable 97.5% 1.8V 2.5V 3.3V 5V 9V 12V |

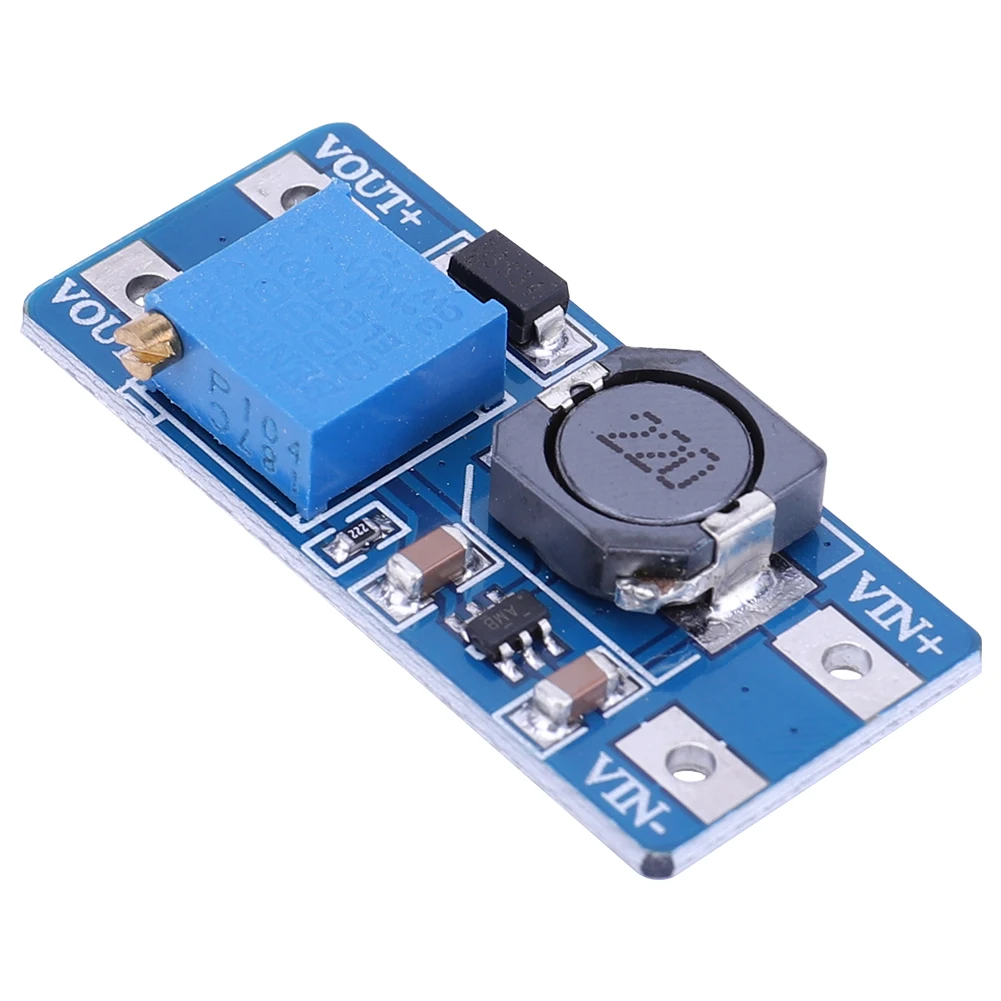

| boost | ❌ | MT3608 DC-DC Step-up Board Converter Module Adjustable Booster Power Supply Module Voltage Regulator 2A Max 2V-24V To 28V |
| LM317 | ❌ | 3-Pin Adjustable Regulator |
| AP63301WU-7 | ✔️ | 3.8V TO 32V INPUT, 3A LOW IQ SYNCHRONOUS BUCK WITH ENHANCED EMI REDUCTION |
| AP2112K-3.3TRG1 | ✔️ | 600mA CMOS LDO REGULATOR WITH ENABLE |
connectivity
| part | library | description |
|---|---|---|
| TCAN1057AVDDFRQ1 | ✔️ | Automotive Fault-Protected CAN FD Transceiver |
| MCP2515T-I/SO | ❌ | Stand-Alone CAN Controller with SPI Interface |
| FT232R? | ✔️ | USB Full Speed to Serial UART IC |
linear
op-amps and such
logic
74 series etc
discrete
| part | library | description |
|---|---|---|
| DMTH6009LK3Q | ✔️ | 60V 50A 175°C N-CHANNEL ENHANCEMENT MODE MOSFET |
| AO3400 | ✔️ | 30V 5.8A N-Channel MOSFET |
| AO3401 | ✔️ | -30V -4A P-Channel MOSFET |
connectors
check wire chart
